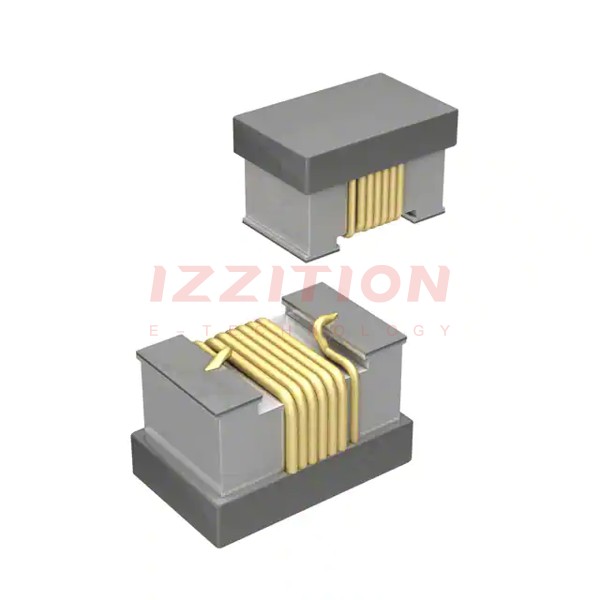

| Part Number | CW160808-33NJ | CW160808-39NJ | CW160808-33NG |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Alumina | Alumina | Alumina |
| Inductance | 33 nH | 39 nH | 33 nH |
| Tolerance | ±5% | ±5% | ±2% |
| Current Rating (Amps) | 600 mA | 600 mA | 600 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 220mOhm | 250mOhm | 220mOhm |
| Q @ Freq | 35 @ 250MHz | 35 @ 250MHz | 35 @ 250MHz |
| Frequency - Self Resonant | 2.3GHz | 2.2GHz | 2.3GHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz | 250 MHz | 250 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.065" L x 0.041" W (1.65mm x 1.05mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
