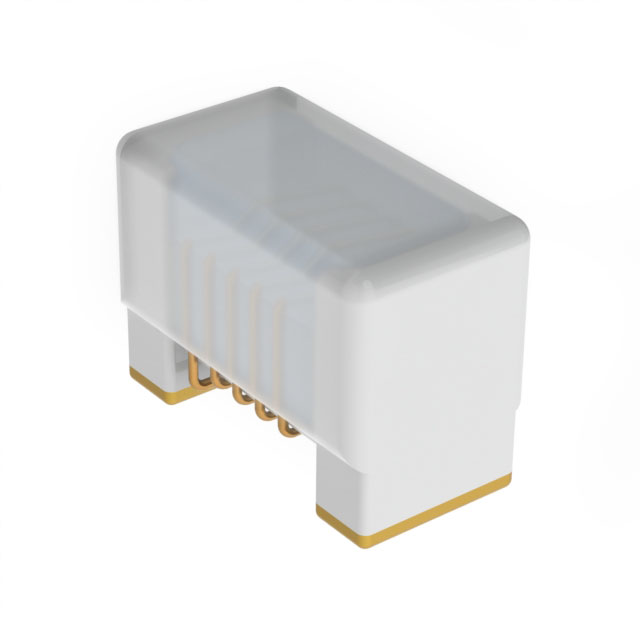

| Part Number | CW105550A-6N8J | CW105550A-6N2J |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ceramic | Ceramic |
| Inductance | 6.8 nH | 6.2 nH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 680 mA | 760 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 104mOhm Max | 83mOhm Max |
| Q @ Freq | 20 @ 250MHz | 23 @ 250MHz |
| Frequency - Self Resonant | 4.8GHz | 5.8GHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz | 250 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 | 0402 |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) |
