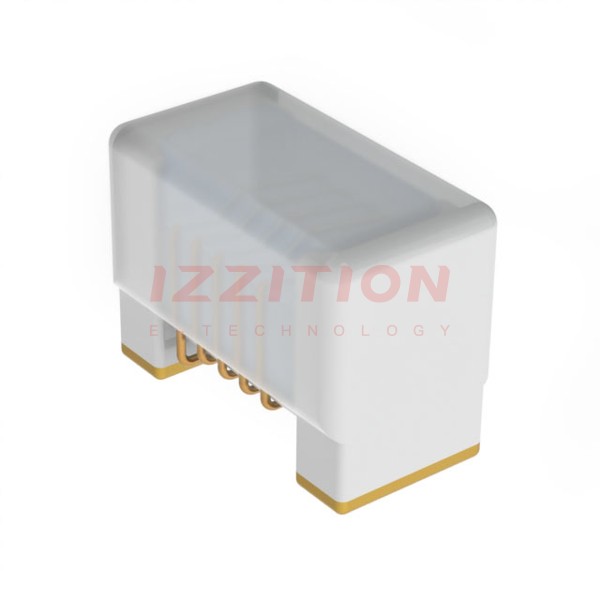

| Part Number | CW105550A-10NJ | CW105550A-40NJ | CW105550A-11NJ | CW105550A-19NJ | CW105550A-30NJ | CW105550A-16NJ | CW105550A-15NJ | CW105550A-12NJ | CW105550A-13NJ | CW105550A-18NJ | CW105550A-20NJ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - | - | - | - |
| Material - Core | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Inductance | 10 nH | 40 nH | 11 nH | 19 nH | 30 nH | 16 nH | 15 nH | 12 nH | 13 nH | 18 nH | 20 nH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 480 mA | 320 mA | 640 mA | 480 mA | 400 mA | 560 mA | 560 mA | 640 mA | 560 mA | 520 mA | 420 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 195mOhm Max | 438mOhm Max | 120mOhm Max | 202mOhm Max | 300mOhm Max | 220mOhm Max | 172mOhm Max | 120mOhm Max | 210mOhm Max | 230mOhm Max | 250mOhm Max |
| Q @ Freq | 23 @ 250MHz | 26 @ 250MHz | 26 @ 250MHz | 26 @ 250MHz | 25 @ 250MHz | 24 @ 250MHz | 26 @ 250MHz | 26 @ 250MHz | 24 @ 250MHz | 25 @ 250MHz | 25 @ 250MHz |
| Frequency - Self Resonant | 3.9GHz | 2.24GHz | 3.68GHz | 3.04GHz | 2.35GHz | 3.1GHz | 3.28GHz | 3.6GHz | 3.45GHz | 3.1GHz | 3GHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz |
| Features | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
