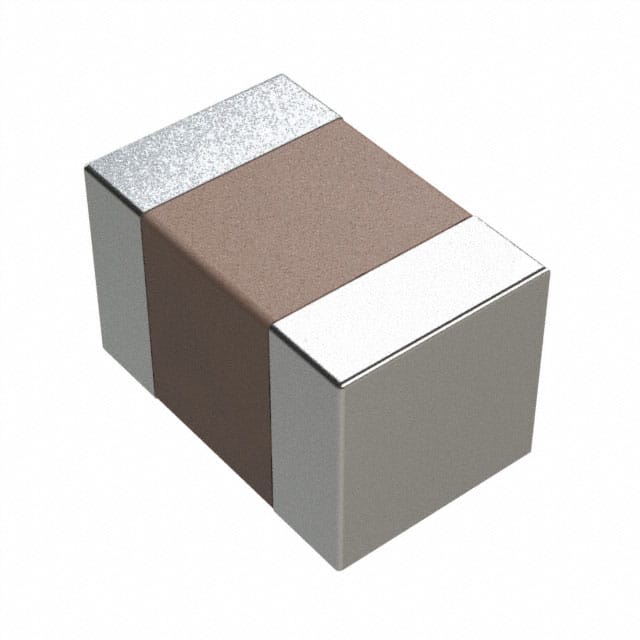

| Part Number | CV201210-R27K | CV201210-R47K | CV201210-R22K |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 270 nH | 470 nH | 220 nH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 250 mA | 200 mA | 250 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 500mOhm Max | 650mOhm Max | 500mOhm Max |
| Q @ Freq | 20 @ 25MHz | 25 @ 25MHz | 20 @ 25MHz |
| Frequency - Self Resonant | 150MHz | 125MHz | 170MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz | 25 MHz | 25 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.057" (1.45mm) | 0.041" (1.05mm) |
