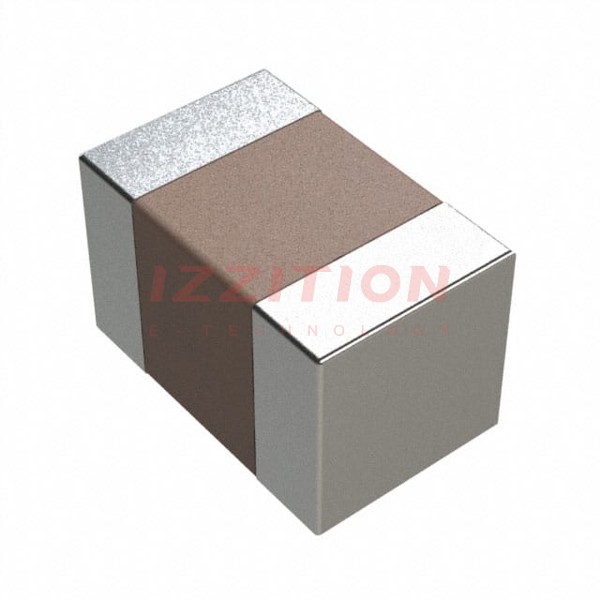

| Part Number | CV201210-6R8K | CV201210-1R8K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 1.8 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 15 mA | 50 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1Ohm Max | 600mOhm Max |
| Q @ Freq | 45 @ 4MHz | 45 @ 10MHz |
| Frequency - Self Resonant | 29MHz | 55MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 4 MHz | 10 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.057" (1.45mm) | 0.041" (1.05mm) |
