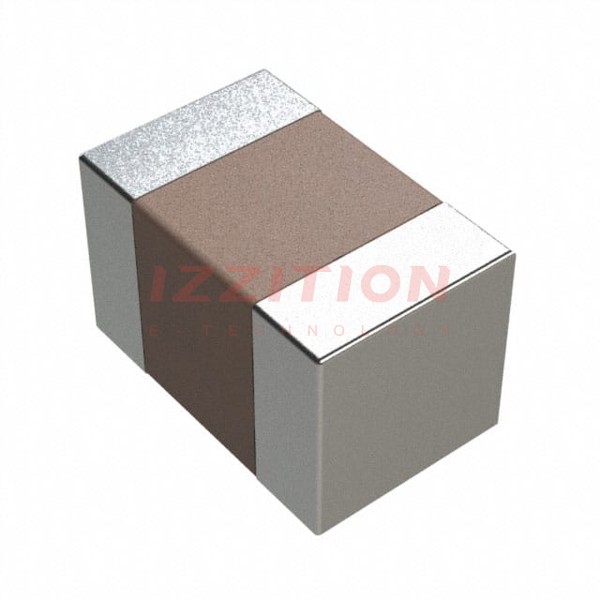

| Part Number | CV201210-1R0K | CV201210-1R5K | CV201210-1R2K | CV201210-1R8K | CV201210-100K | CV201210-120K | CV201210-150K | CV201210-180K |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1.5 µH | 1.2 µH | 1.8 µH | 10 µH | 12 µH | 15 µH | 18 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 50 mA | 50 mA | 50 mA | 50 mA | 15 mA | 5 mA | 5 mA | 5 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 400mOhm Max | 500mOhm Max | 500mOhm Max | 600mOhm Max | 1.15Ohm Max | 1.25Ohm Max | 800mOhm Max | 900mOhm Max |
| Q @ Freq | 45 @ 10MHz | 45 @ 10MHz | 45 @ 10MHz | 45 @ 10MHz | 45 @ 2MHz | 45 @ 2MHz | 30 @ 1MHz | 30 @ 1MHz |
| Frequency - Self Resonant | 75MHz | 60MHz | 65MHz | 55MHz | 24MHz | 22MHz | 19MHz | 18MHz |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 10 MHz | 10 MHz | 10 MHz | 10 MHz | 2 MHz | 2 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) |
