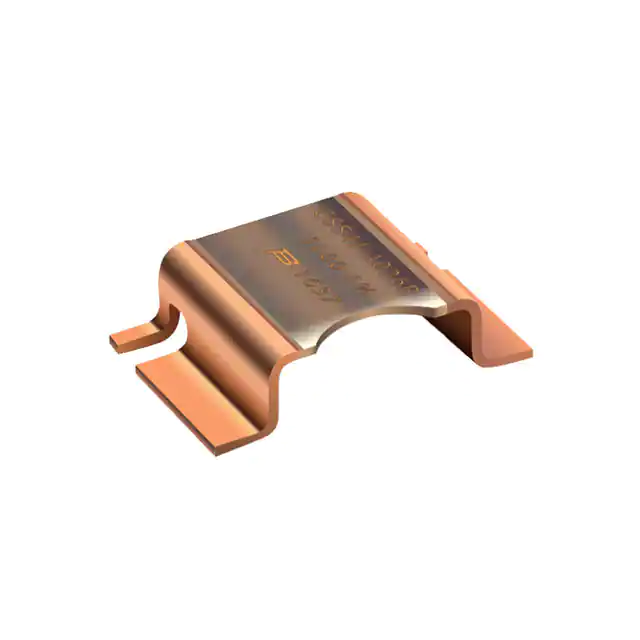

| Part Number | CSS4J-4026R-L300F | CSS4J-4026R-L500F | CSS4J-4026R-L200F |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Resistance | 300 µOhms | 500 µOhms | 200 µOhms |
| Tolerance | ±1% | ±1% | ±1% |
| Power (Watts) | 5W | 5W | 5W |
| Composition | Metal Element | Metal Element | Metal Element |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant | Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±100ppm/°C | ±50ppm/°C | ±150ppm/°C |
| Operating Temperature | -55°C ~ 170°C | -55°C ~ 170°C | -55°C ~ 170°C |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | 4026 | - |
| Ratings | AEC-Q200 | - | AEC-Q200 |
| Size / Dimension | 0.397" L x 0.260" W (10.06mm x 6.60mm) | 0.397" L x 0.260" W (10.06mm x 6.60mm) | 0.397" L x 0.260" W (10.06mm x 6.60mm) |
| Height - Seated (Max) | 0.144" (3.65mm) | 0.130" (3.31mm) | 0.149" (3.79mm) |
| Number of Terminations | 4 | 4 | 4 |
| Failure Rate | - | - | - |
