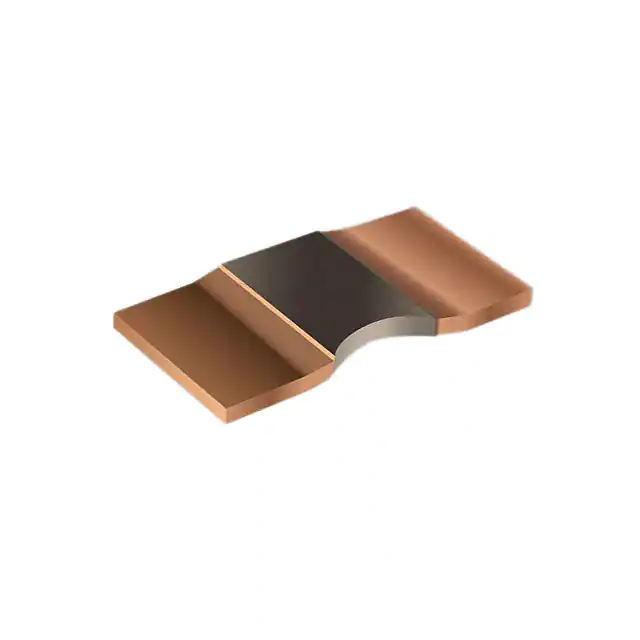

| Part Number | CSS2H-5930R-L200F | CSS2H-5930R-L300F | CSS2H-5930R-L500F | CSS2H-5930R-L200J |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance | 200 µOhms | 300 µOhms | 500 µOhms | 200 µOhms |
| Tolerance | ±1% | ±1% | ±1% | ±5% |
| Power (Watts) | 10W | 15W | 8W | 10W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense, Moisture Resistant | Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±50ppm/°C | ±150ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Operating Temperature | -55°C ~ 170°C | -55°C ~ 170°C | -55°C ~ 170°C | -55°C ~ 170°C |
| Package / Case | 3920 (1052 Metric) | 3920 (1052 Metric) | Nonstandard | 3920 (1052 Metric) |
| Supplier Device Package | 3920 | 3920 | 5931 | 3920 |
| Ratings | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
| Size / Dimension | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.591" L x 0.305" W (15.00mm x 7.75mm) | 0.394" L x 0.205" W (10.00mm x 5.20mm) |
| Height - Seated (Max) | 0.102" (2.60mm) | 0.057" (1.45mm) | 0.026" (0.66mm) | 0.102" (2.60mm) |
| Number of Terminations | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - |
