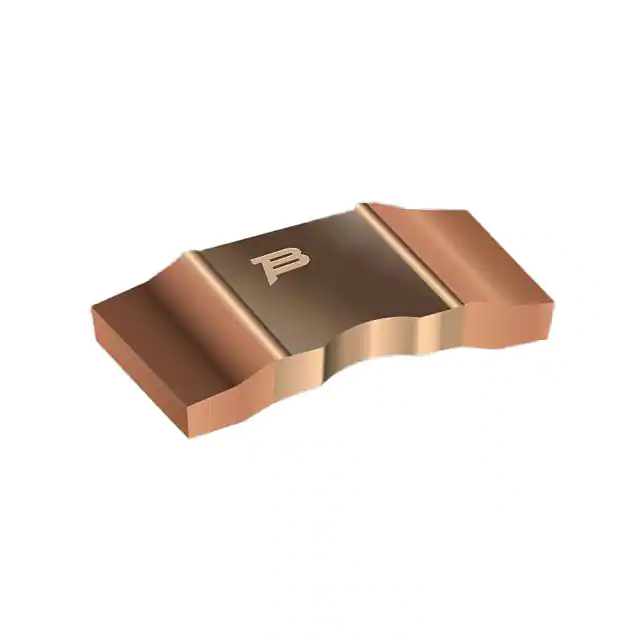

| Part Number | CSS2H-3920K-5L00F | CSS2H-3920K-2L00F | CSS2H-3920K-3L00F | CSS2H-3920K-4L00F |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance | 5 mOhms | 2 MOhms | 3 mOhms | 4 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 2W | 6W | 5W | 4W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant | Current Sense, Moisture Resistant | Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±75ppm/°C | ±50ppm/°C | ±50ppm/°C | ±75ppm/°C |
| Operating Temperature | -55°C ~ 170°C | -55°C ~ 170°C | -55°C ~ 170°C | -55°C ~ 170°C |
| Package / Case | 3920 (1052 Metric) | 3920 (1052 Metric) | 3920 (1052 Metric) | 3920 (1052 Metric) |
| Supplier Device Package | 3920 | 3920 | 3920 | 3920 |
| Ratings | AEC-Q200 | - | - | AEC-Q200 |
| Size / Dimension | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.394" L x 0.205" W (10.00mm x 5.20mm) |
| Height - Seated (Max) | 0.055" (1.40mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.040" (1.02mm) |
| Number of Terminations | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - |
