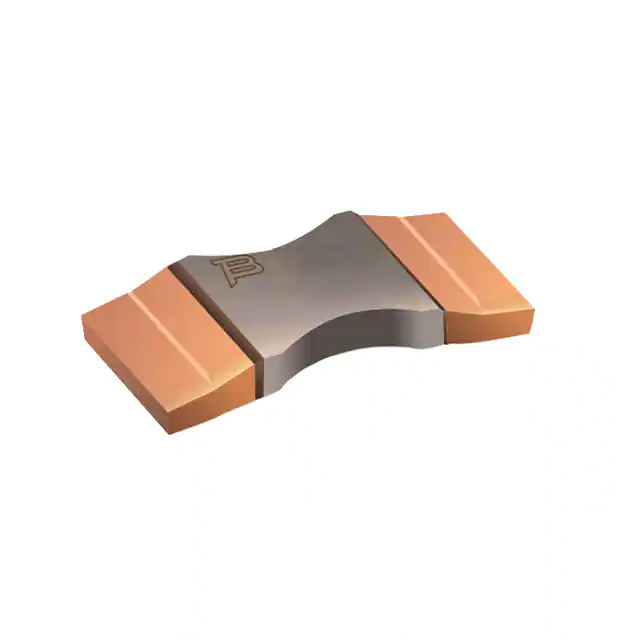

| Part Number | CSS2H-2512K-5L00F | CSS2H-2512K-2L00F | CSS2H-2512K-3L00F | CSS2H-2512K-4L00F |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance | 5 mOhms | 2 MOhms | 3 mOhms | 4 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 2.5W | 5W | 4W | 3W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±75ppm/°C | ±50ppm/°C | ±50ppm/°C | ±75ppm/°C |
| Operating Temperature | -55°C ~ 170°C | -55°C ~ 170°C | -55°C ~ 170°C | -55°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) |
| Supplier Device Package | 2512 | 2512 | 2512 | 2512 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.250" L x 0.120" W (6.35mm x 3.05mm) | 0.250" L x 0.120" W (6.35mm x 3.05mm) | 0.250" L x 0.120" W (6.35mm x 3.05mm) | 0.250" L x 0.120" W (6.35mm x 3.05mm) |
| Height - Seated (Max) | 0.034" (0.87mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.034" (0.87mm) |
| Number of Terminations | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - |
