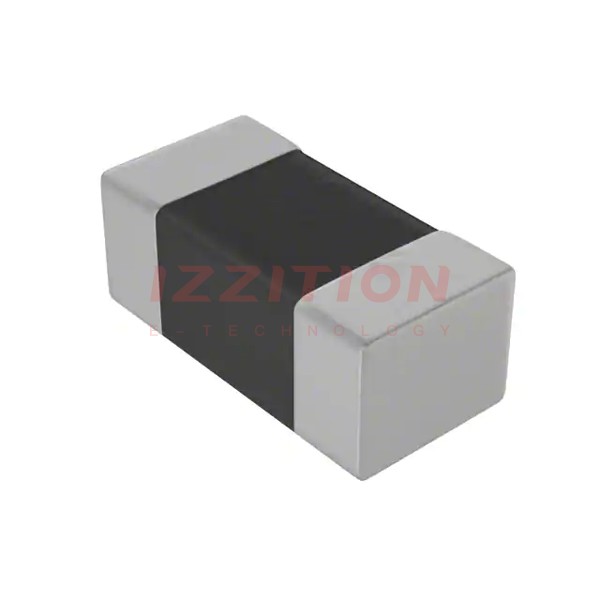

| Part Number | CS321613-R39K | CS321613-R33K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite |
| Inductance | 390 nH | 330 nH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 200 mA | 250 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 300mOhm Max | 300mOhm Max |
| Q @ Freq | 50 @ 25MHz | 50 @ 25MHz |
| Frequency - Self Resonant | 135MHz | 145MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz | 25 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) |
