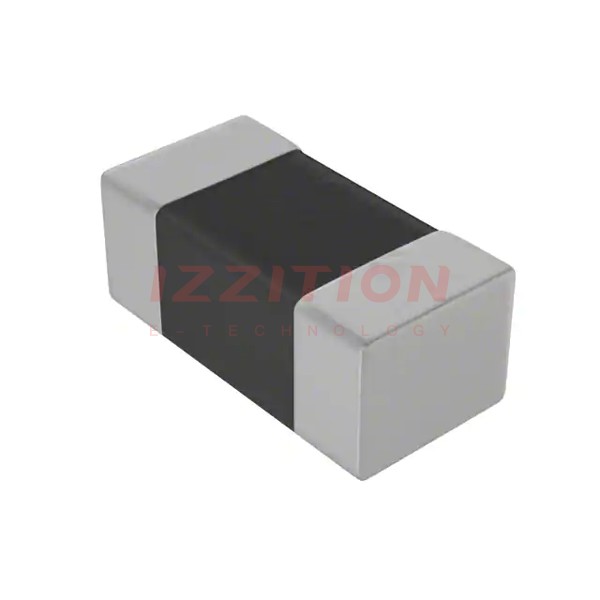

| Part Number | CS321613-3R9K | CS321613-3R3K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.9 µH | 3.3 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 50 mA | 50 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 800mOhm Max | 700mOhm Max |
| Q @ Freq | 85 @ 10MHz | 85 @ 10MHz |
| Frequency - Self Resonant | 38MHz | 40MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 10 MHz | 10 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 (3216 Metric) | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) |
