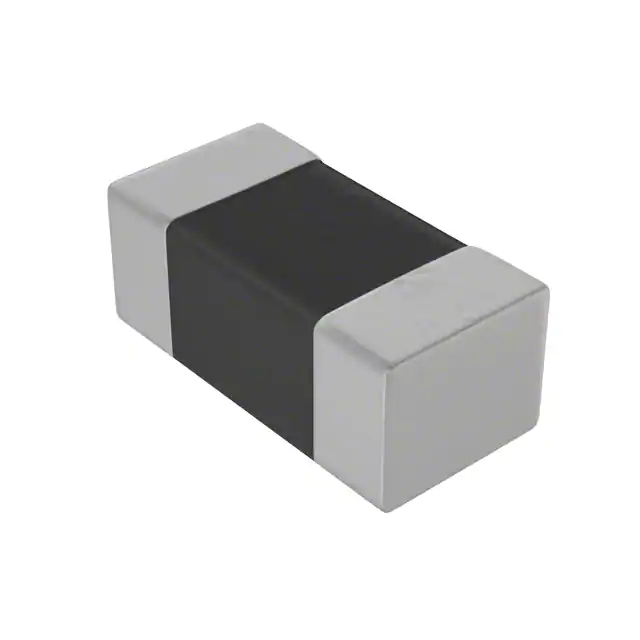

| Part Number | CS321613-100K | CS321613-1R0K | CS321613-150K | CS321613-120K | CS321613-180K |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 1 µH | 15 µH | 12 µH | 18 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 25 mA | 100 mA | 25 mA | 25 mA | 25 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 700mOhm Max | 250mOhm Max | 1.1Ohm Max | 900mOhm Max | 1.4Ohm Max |
| Q @ Freq | 65 @ 2MHz | 80 @ 10MHz | 45 @ 1MHz | 65 @ 2MHz | 45 @ 1MHz |
| Frequency - Self Resonant | 24MHz | 75MHz | 19MHz | 22MHz | 18MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 2 MHz | 10 MHz | 1 MHz | 2 MHz | 1 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 | 1206 | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) |
