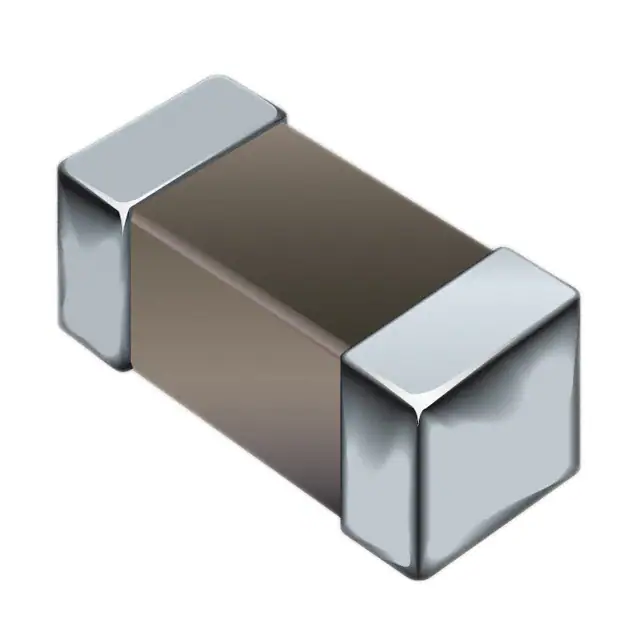

| Part Number | CS160808-R68K | CS160808-R18K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite |
| Inductance | 680 nH | 180 nH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 150 mA | 200 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 900mOhm Max | 400mOhm Max |
| Q @ Freq | 30 @ 25MHz | 30 @ 25MHz |
| Frequency - Self Resonant | 80MHz | 165MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz | 25 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) |
