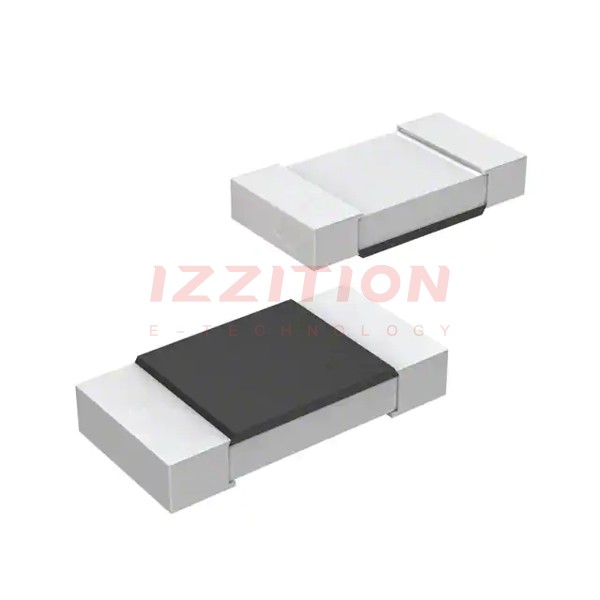

| Part Number | CRT1206-BY-1001ELF | CRT1206-BY-1004ELF | CRT1206-BY-1003ELF | CRT1206-BY-1002ELF | CRT1206-BY-1021ELF | CRT1206-BY-2001ELF | CRT1206-BY-3001ELF | CRT1206-BV-1001ELF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 kOhms | 1 MOhms | 100 kOhms | 10 kOhms | 1.02 kOhms | 2 kOhms | 3 kOhms | 1 kOhms |
| Tolerance | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film |
| Features | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense |
| Temperature Coefficient | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±5ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 |
| Ratings | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.120" L x 0.061" W (3.05mm x 1.55mm) |
| Height - Seated (Max) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
