Please send RFQ , we will respond immediately.

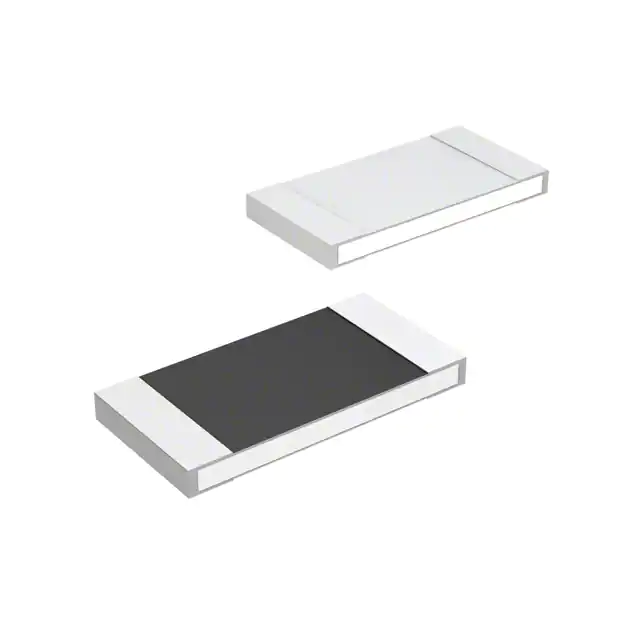

| Part Number | CRM2512-JW-120ELF | CRM2512-JW-220ELF | CRM2512-JW-820ELF | CRM2512-JW-150ELF | CRM2512-JW-1R0ELF | CRM2512-JW-160ELF | CRM2512-JW-130ELF | CRM2512-JW-121ELF | CRM2512-JW-124ELF | CRM2512-JW-100ELF |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 12 Ohms | 22 Ohms | 82 Ohms | 15 Ohms | 1 Ohms | 16 Ohms | 13 Ohms | 120 Ohms | 120 kOhms | 10 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) |
| Supplier Device Package | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
