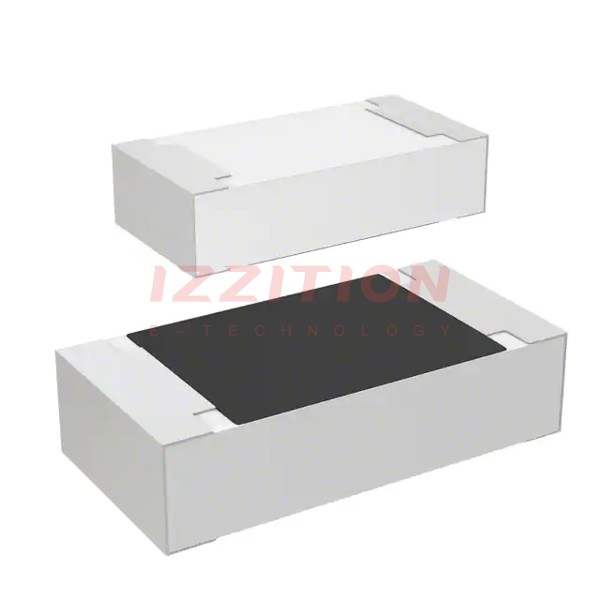

| Part Number | CRM1206-FX-2R20ELF | CRM1206-FX-2R70ELF | CRM1206-FX-2R21ELF | CRM1206-FW-2R20ELF | CRM1206-FX-1R20ELF | CRM1206-FX-2R00ELF |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Resistance | 2.2 Ohms | 2.7 Ohms | 2.21 Ohms | 2.2 Ohms | 1.2 Ohms | 2 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±200ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 |
| Ratings | - | - | - | - | - | - |
| Size / Dimension | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) |
| Height - Seated (Max) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - |
