Please send RFQ , we will respond immediately.

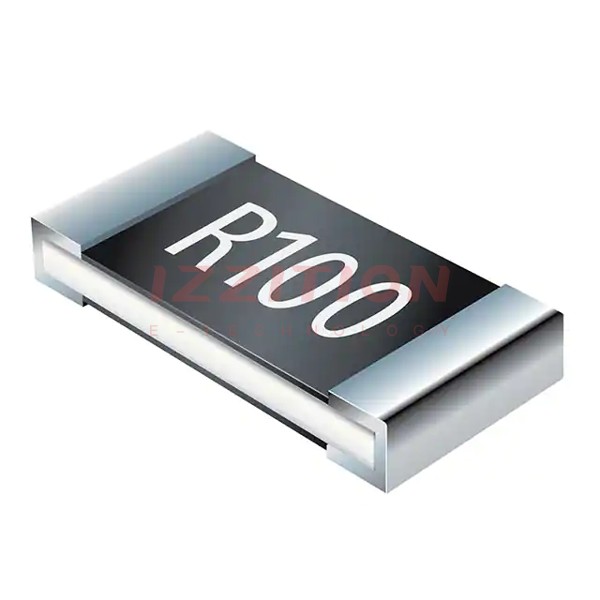

| Part Number | CRM1206-FX-1200ELF | CRM1206-FX-1R00ELF | CRM1206-FX-2200ELF | CRM1206-FX-1203ELF | CRM1206-FX-12R0ELF | CRM1206-FX-1210ELF | CRM1206-FX-1500ELF | CRM1206-FX-1000ELF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | - | 1 Ohms | 220 Ohms | 120 kOhms | 12 Ohms | 121 Ohms | 150 Ohms | 100 Ohms |
| Tolerance | - | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | - | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | - | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | - | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense |
| Temperature Coefficient | - | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | - | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | - | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | - | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 |
| Ratings | - | - | - | - | - | - | - | - |
| Size / Dimension | - | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) |
| Height - Seated (Max) | - | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) |
| Number of Terminations | - | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
