Please send RFQ , we will respond immediately.

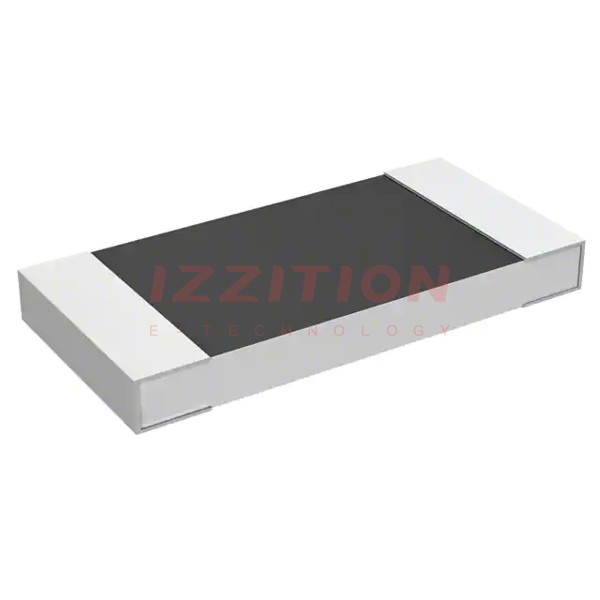

| Part Number | CRL2512-JW-R120ELF | CRL2512-JW-R150ELF | CRL2512-JW-R820ELF | CRL2512-JW-R220ELF | CRL2512-JW-R620ELF | CRL2512-JW-R130ELF | CRL2512-JW-R160ELF | CRL2512-JW-R100ELF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 120 mOhms | 150 mOhms | 820 mOhms | 220 mOhms | 620 mOhms | 130 mOhms | 160 mOhms | 100 mOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) |
| Supplier Device Package | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 |
| Ratings | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
