Please send RFQ , we will respond immediately.

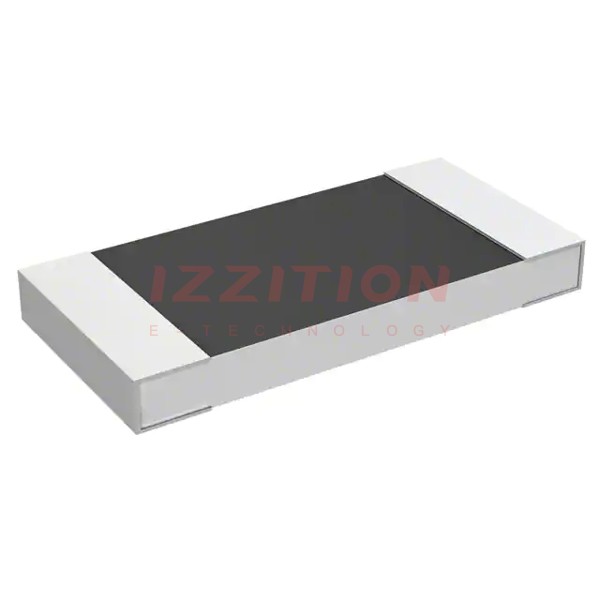

| Part Number | CRL2512-FW-1R20ELF | CRL2512-FW-1R30ELF | CRL2512-FW-1R50ELF | CRL2512-FW-1R60ELF | CRL2512-FW-1R80ELF | CRL2512-FW-2R20ELF | CRL2512-FW-6R20ELF | CRL2512-FW-8R20ELF | CRL2512-FW-1R00ELF | CRL2512-FW-1R10ELF |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 1.2 Ohms | 1.3 Ohms | 1.5 Ohms | 1.6 Ohms | 1.8 Ohms | 2.2 Ohms | 6.2 Ohms | 8.2 Ohms | 1 Ohms | 1.1 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) |
| Supplier Device Package | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
