Please send RFQ , we will respond immediately.

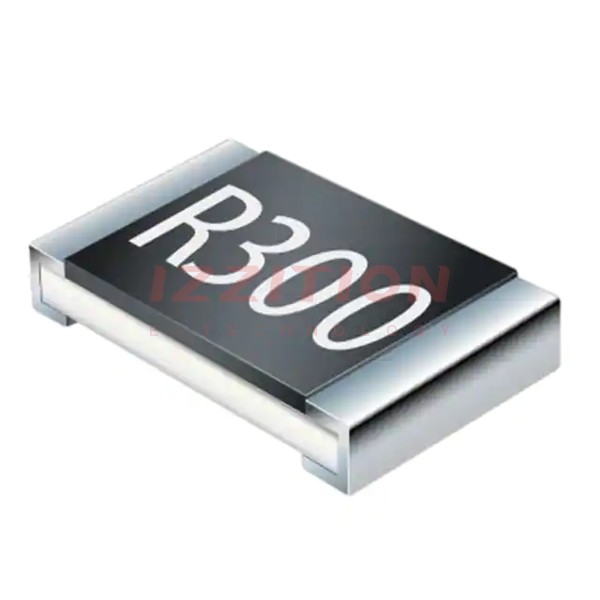

| Part Number | CRL2010-JW-2R20ELF | CRL2010-JW-2R40ELF | CRL2010-JW-2R70ELF | CRL2010-JW-6R20ELF | CRL2010-JW-8R20ELF | CRL2010-FW-2R20ELF | CRL2010-JW-1R20ELF | CRL2010-JW-2R00ELF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 2.2 Ohms | 2.4 Ohms | 2.7 Ohms | 6.2 Ohms | 8.2 Ohms | 2.2 Ohms | 1.2 Ohms | 2 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±1% | ±5% | ±5% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) |
| Supplier Device Package | 2010 | 2010 | 2010 | 2010 | 2010 | 2010 | 2010 | 2010 |
| Ratings | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
