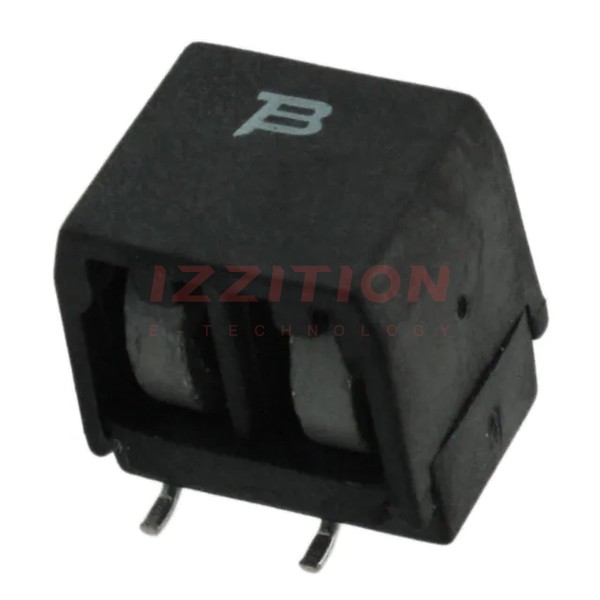

| Part Number | CMF-SDP10A-2 | CMF-SDP50A-2 | CMF-SDP10-2 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Ceramic | Ceramic | Ceramic |
| Voltage - Max | 230V (250V Int) | 230V (600V Int) | 230V (250V Int) |
| Current - Max | 1 A | 2.5 A | 1 A |
| Current - Hold (Ih) (Max) | 150 mA | 90 mA | 180 mA |
| Current - Trip (It) | 360 mA | 190 mA | 360 mA |
| Time to Trip | 3.8 s | 200 ms | 3.8 s |
| Resistance - Initial (Ri) (Min) | - | - | - |
| Resistance - Post Trip (R1) (Max) | - | - | - |
| Resistance - 25°C (Typ) | 10 Ohms | 50 Ohms | 10 Ohms |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD Cube | 4-SMD Cube | 4-SMD Cube |
| Size / Dimension | 0.344" L x 0.283" W (8.75mm x 7.20mm) | 0.344" L x 0.283" W (8.75mm x 7.20mm) | 0.433" L x 0.354" W (11.00mm x 9.00mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.453" (11.50mm) |
| Lead Spacing | - | - | - |
