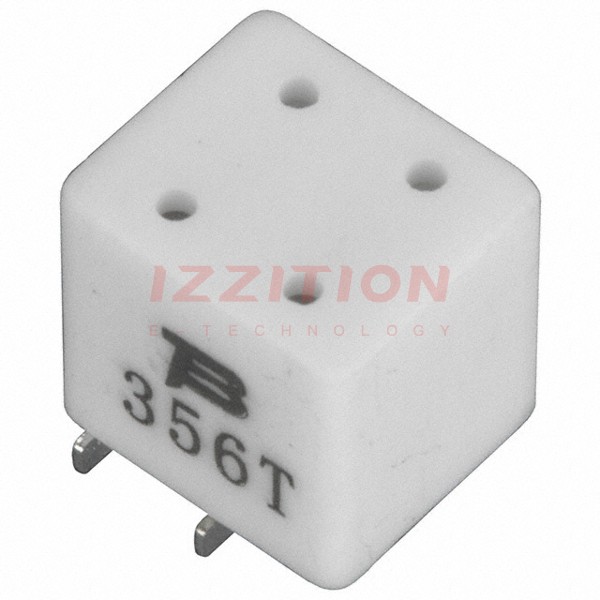

| Part Number | CMF-SD35A-2 | CMF-SDP35A-2 | CMF-SD25A-2 | CMF-SD35-2 |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | Ceramic | Ceramic |
| Voltage - Max | 230V (600V Int) | 230V (600V Int) | 230V (600V Int) | 230V (600V Int) |
| Current - Max | 2.5 A | 2.5 A | 2.8 A | 3 A |
| Current - Hold (Ih) (Max) | 100 mA | 110 mA | 130 mA | 100 mA |
| Current - Trip (It) | 200 mA | 230 mA | 260 mA | 200 mA |
| Time to Trip | 200 ms | 200 ms | 300 ms | 200 ms |
| Resistance - Initial (Ri) (Min) | - | - | - | - |
| Resistance - Post Trip (R1) (Max) | - | - | - | - |
| Resistance - 25°C (Typ) | 35 Ohms | 35 Ohms | 25 Ohms | 35 Ohms |
| Operating Temperature | - | -40°C ~ 125°C | - | - |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD Cube | 4-SMD Cube | 4-SMD Cube | 4-SMD Cube |
| Size / Dimension | 0.319" L x 0.282" W (8.10mm x 7.15mm) | 0.344" L x 0.283" W (8.75mm x 7.20mm) | 0.402" L x 0.354" W (10.20mm x 9.00mm) | 0.402" L x 0.354" W (10.20mm x 9.00mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.335" (8.50mm) | 0.402" (10.20mm) | 0.425" (10.80mm) | 0.425" (10.80mm) |
| Lead Spacing | - | - | - | - |
