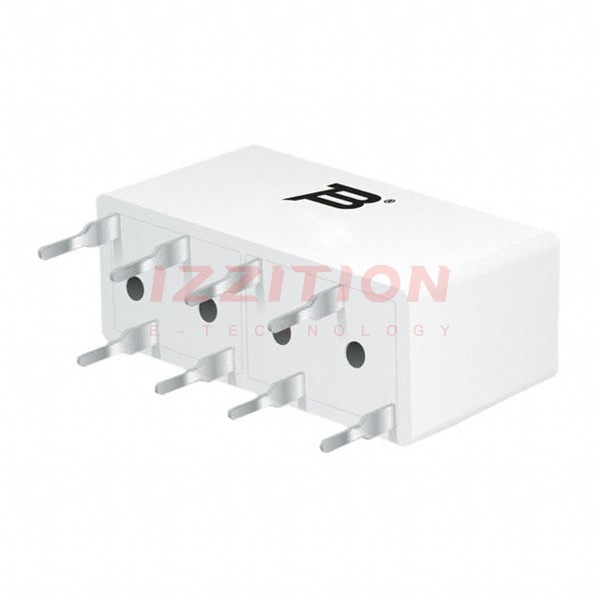

| Part Number | CMF-RQ50-0 | CMF-RL50-0 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active |
| Type | Ceramic | Ceramic |
| Voltage - Max | 230V (600V Int) | 220V (600V Int) |
| Current - Max | 3 A | 3 A |
| Current - Hold (Ih) (Max) | 90 mA | 65 mA |
| Current - Trip (It) | 190 mA | 150 mA |
| Time to Trip | 100 ms | 150 ms |
| Resistance - Initial (Ri) (Min) | - | - |
| Resistance - Post Trip (R1) (Max) | - | - |
| Resistance - 25°C (Typ) | 50 Ohms | 50 Ohms |
| Operating Temperature | - | -40°C ~ 125°C |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 8-DIP (0.197", 5.00mm) | Radial, Disc |
| Size / Dimension | 0.787" L x 0.354" W (20.00mm x 9.00mm) | 0.386" L x 0.197" W (9.80mm x 5.00mm) |
| Height - Seated (Max) | 0.398" (10.10mm) | 0.532" (13.50mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.200" (5.08mm) |
