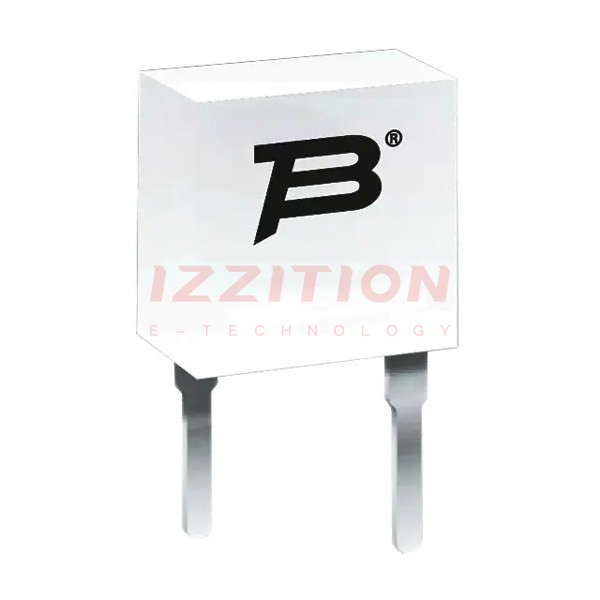

| Part Number | CMF-RLC50-0 | CMF-RL50-0 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active |
| Type | Ceramic | Ceramic |
| Voltage - Max | 230V (650V Int) | 220V (600V Int) |
| Current - Max | 3 A | 3 A |
| Current - Hold (Ih) (Max) | 65 mA | 65 mA |
| Current - Trip (It) | 150 mA | 150 mA |
| Time to Trip | 100 ms | 150 ms |
| Resistance - Initial (Ri) (Min) | - | - |
| Resistance - Post Trip (R1) (Max) | - | - |
| Resistance - 25°C (Typ) | 50 Ohms | 50 Ohms |
| Operating Temperature | - | -40°C ~ 125°C |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.354" L x 0.177" W (9.00mm x 4.50mm) | 0.386" L x 0.197" W (9.80mm x 5.00mm) |
| Height - Seated (Max) | 0.378" (9.60mm) | 0.532" (13.50mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) |
