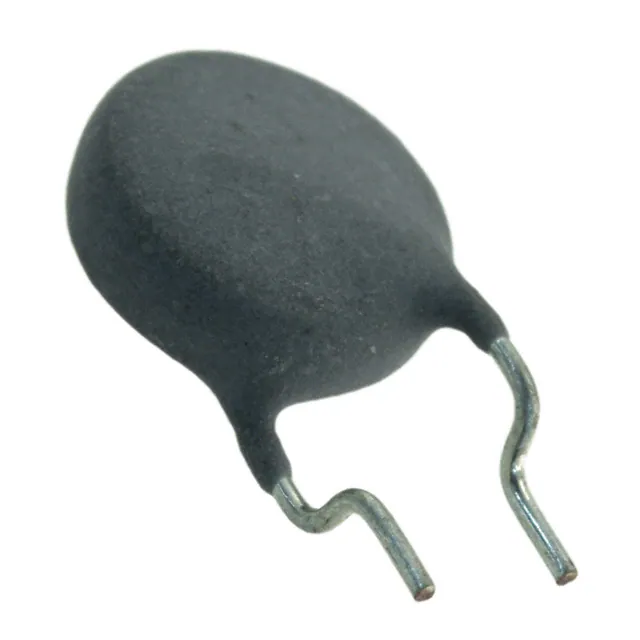

| Part Number | CMF-RL35A-10-0 | CMF-RL55A-10-0 | CMF-RL35-10-0 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Ceramic | Ceramic | Ceramic |
| Voltage - Max | 220V (600V Int) | 220V (600V Int) | 220V (600V Int) |
| Current - Max | 3 A | 3 A | 3 A |
| Current - Hold (Ih) (Max) | 75 mA | 50 mA | 75 mA |
| Current - Trip (It) | 150 mA | 100 mA | 150 mA |
| Time to Trip | 150 ms | 100 ms | 150 ms |
| Resistance - Initial (Ri) (Min) | - | - | - |
| Resistance - Post Trip (R1) (Max) | - | - | - |
| Resistance - 25°C (Typ) | 35 Ohms | 55 Ohms | 35 Ohms |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.295" L x 0.220" W (7.50mm x 5.60mm) | 0.295" L x 0.220" W (7.50mm x 5.60mm) | 0.386" L x 0.197" W (9.80mm x 5.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.532" (13.50mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.200" (5.08mm) |
