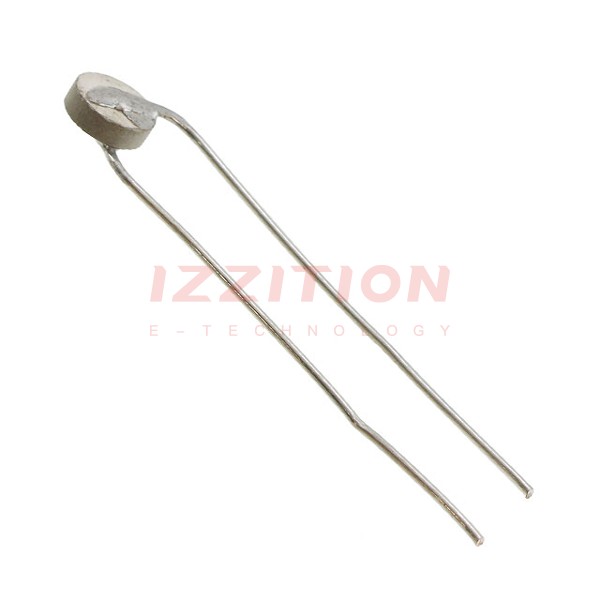

| Part Number | CMF-RL25U-0 | CMF-RL25-0 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Ceramic | Ceramic |
| Voltage - Max | 220V (600V Int) | 220V (600V Int) |
| Current - Max | 900 mA | 3 A |
| Current - Hold (Ih) (Max) | 60 mA | 100 mA |
| Current - Trip (It) | 150 mA | 200 mA |
| Time to Trip | 250 ms | 300 ms |
| Resistance - Initial (Ri) (Min) | - | - |
| Resistance - Post Trip (R1) (Max) | - | - |
| Resistance - 25°C (Typ) | 25 Ohms | 25 Ohms |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.205" L x 0.138" W (5.20mm x 3.50mm) | 0.386" L x 0.197" W (9.80mm x 5.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) | 0.532" (13.50mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
