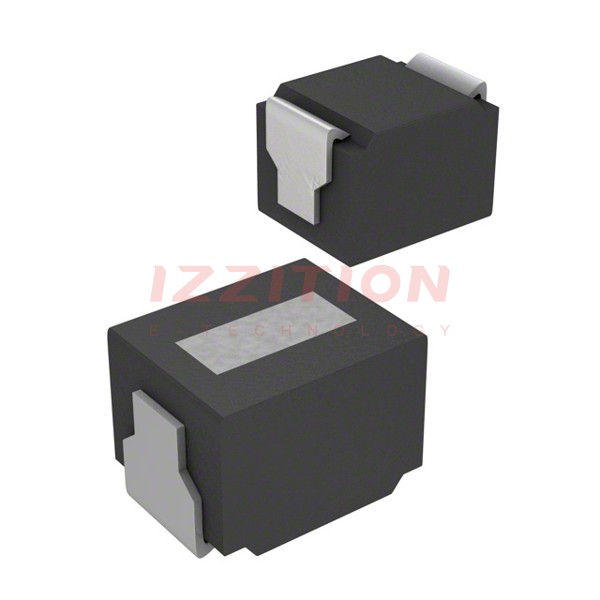

| Part Number | CM252016-R39ML | CM252016-R33ML | CM252016-R39KL |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound |
| Material - Core | Ferrite | Ferrite | Polymer |
| Inductance | 390 nH | 330 nH | 390 nH |
| Tolerance | ±20% | ±20% | ±10% |
| Current Rating (Amps) | 160 mA | 170 mA | 160 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 950mOhm Max | 850mOhm Max | 950mOhm Max |
| Q @ Freq | 25 @ 25.2MHz | 25 @ 25.2MHz | 25 @ 25.2MHz |
| Frequency - Self Resonant | 175MHz | 190MHz | 175MHz |
| Ratings | - | - | - |
| Operating Temperature | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C |
| Inductance Frequency - Test | 25.2 MHz | 25.2 MHz | 25.2 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) |
