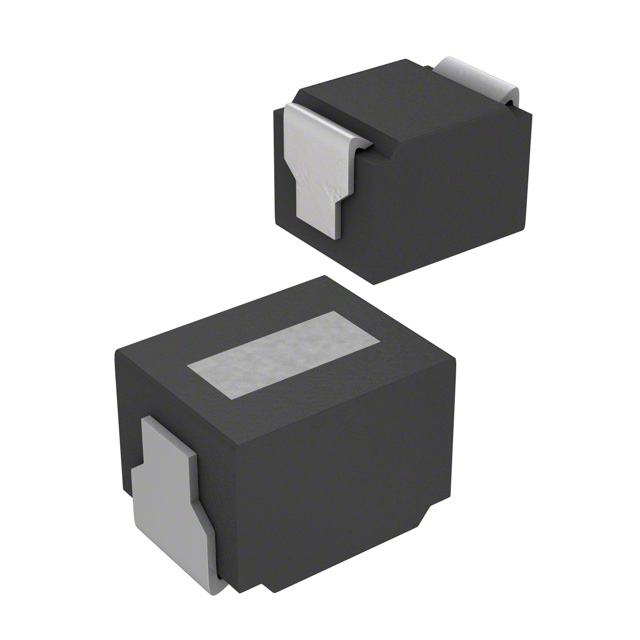

| Part Number | CM252016-820KL | CM252016-82NKL | CM252016-120KL | CM252016-220KL |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Polymer | Ferrite | Ferrite |
| Inductance | 82 µH | 82 nH | 12 µH | 22 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 65 mA | 185 mA | 75 mA | 60 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 19Ohm Max | 730mOhm Max | 3.8Ohm Max | 5.8Ohm Max |
| Q @ Freq | 20 @ 2.52MHz | 15 @ 100MHz | 25 @ 2.52MHz | 25 @ 2.52MHz |
| Frequency - Self Resonant | 13MHz | 520MHz | 30MHz | 22MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz | 100 MHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) |
