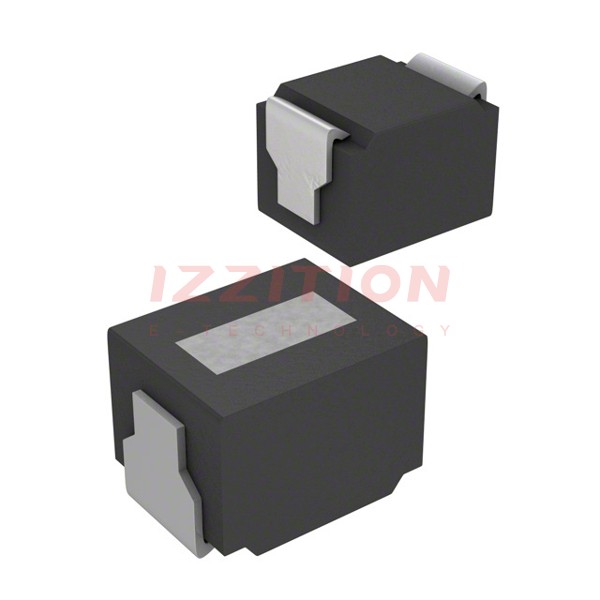

| Part Number | CM252016-2R7JL | CM252016-2R7KL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2.7 µH | 2.7 µH |
| Tolerance | ±5% | ±10% |
| Current Rating (Amps) | 145 mA | 145 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.2Ohm Max | 1.2Ohm Max |
| Q @ Freq | 25 @ 7.96MHz | 25 @ 7.96MHz |
| Frequency - Self Resonant | 75MHz | 75MHz |
| Ratings | - | - |
| Operating Temperature | -20°C ~ 100°C | -20°C ~ 100°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) |
