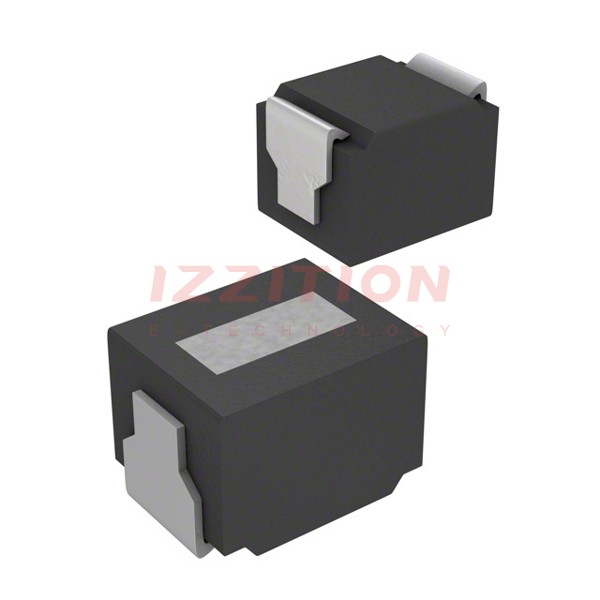

| Part Number | CM252016-18NKL | CM252016-68NKL | CM252016-10NKL | CM252016-12NKL | CM252016-15NKL | CM252016-180KL |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Drum Core, Wirewound |
| Material - Core | Polymer | Polymer | Polymer | Polymer | Polymer | Ferrite |
| Inductance | 18 nH | 68 nH | 10 nH | 12 nH | 15 nH | 18 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 250 mA | 190 mA | 280 mA | 270 mA | 255 mA | 65 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 400mOhm Max | 680mOhm Max | 320mOhm Max | 340mOhm Max | 380mOhm Max | 5Ohm Max |
| Q @ Freq | 10 @ 100MHz | 15 @ 100MHz | 10 @ 100MHz | 10 @ 100MHz | 10 @ 100MHz | 25 @ 2.52MHz |
| Frequency - Self Resonant | 1.55GHz | 590MHz | 2.5GHz | 2.2GHz | 1.8GHz | 25MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 2.52 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) |
