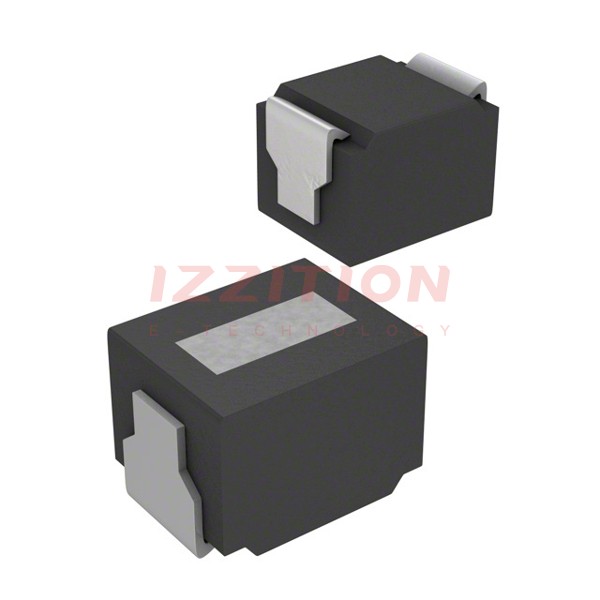

| Part Number | CM252016-150KL | CM252016-15NKL | CM252016-180KL | CM252016-1R0KL | CM252016-100KL | CM252016-120KL |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Polymer | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 15 nH | 18 µH | 1 µH | 10 µH | 12 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 70 mA | 255 mA | 65 mA | 195 mA | 80 mA | 75 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 4.4Ohm Max | 380mOhm Max | 5Ohm Max | 650mOhm Max | 3.5Ohm Max | 3.8Ohm Max |
| Q @ Freq | 25 @ 2.52MHz | 10 @ 100MHz | 25 @ 2.52MHz | 25 @ 7.96MHz | 25 @ 2.52MHz | 25 @ 2.52MHz |
| Frequency - Self Resonant | 28MHz | 1.8GHz | 25MHz | 115MHz | 32MHz | 30MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz | 100 MHz | 2.52 MHz | 7.96 MHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) |
