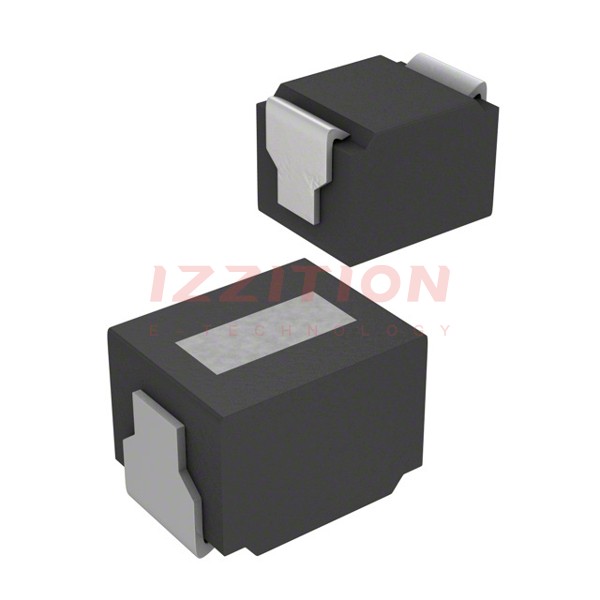

| Part Number | CM252016-12NKL | CM252016-15NKL | CM252016-18NKL | CM252016-22NKL | CM252016-82NKL | CM252016-10NKL | CM252016-120KL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Drum Core, Wirewound |
| Material - Core | Polymer | Polymer | Polymer | Polymer | Polymer | Polymer | Ferrite |
| Inductance | 12 nH | 15 nH | 18 nH | 22 nH | 82 nH | 10 nH | 12 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 270 mA | 255 mA | 250 mA | 240 mA | 185 mA | 280 mA | 75 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 340mOhm Max | 380mOhm Max | 400mOhm Max | 430mOhm Max | 730mOhm Max | 320mOhm Max | 3.8Ohm Max |
| Q @ Freq | 10 @ 100MHz | 10 @ 100MHz | 10 @ 100MHz | 15 @ 100MHz | 15 @ 100MHz | 10 @ 100MHz | 25 @ 2.52MHz |
| Frequency - Self Resonant | 2.2GHz | 1.8GHz | 1.55GHz | 1.35GHz | 520MHz | 2.5GHz | 30MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 2.52 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) |
