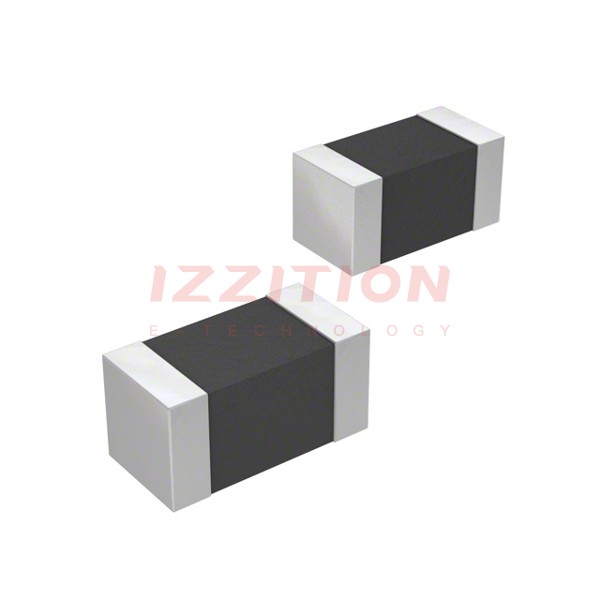

| Part Number | CM160808-3N3DL | CM160808-3N9DL | CM160808-3N6DL |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Alumina | Alumina | Alumina |
| Inductance | 3.3 nH | 3.9 nH | 3.6 nH |
| Tolerance | ±0.3nH | ±0.3nH | ±0.3nH |
| Current Rating (Amps) | 500 mA | 450 mA | - |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 120mOhm Max | 150mOhm Max | - |
| Q @ Freq | 9 @ 100MHz | 9 @ 100MHz | 9 @ 100MHz |
| Frequency - Self Resonant | 5.5GHz | 5.5GHz | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) |
