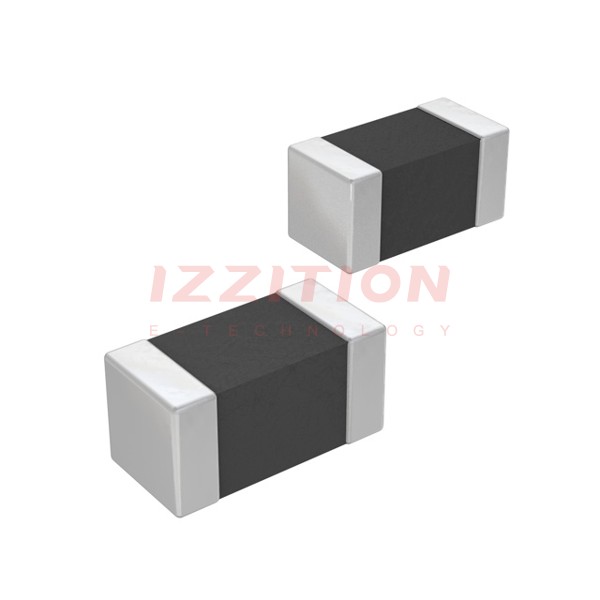

| Part Number | CM100505-1N2DL | CM100505-1N5DL | CM100505-1N8DL | CM100505-2N2DL | CM100505-1N0DL |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Alumina | Alumina | Alumina | Alumina | Alumina |
| Inductance | 1.2 nH | 1.5 nH | 1.8 nH | 2.2 nH | 1 nH |
| Tolerance | ±0.3nH | ±0.3nH | ±0.3nH | ±0.3nH | ±0.3nH |
| Current Rating (Amps) | 400 mA | 400 mA | 400 mA | 400 mA | 400 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 60mOhm Max | 70mOhm Max | 80mOhm Max | 90mOhm Max | 50mOhm Max |
| Q @ Freq | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz |
| Frequency - Self Resonant | 6GHz | 6GHz | 6GHz | 6GHz | 6GHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
