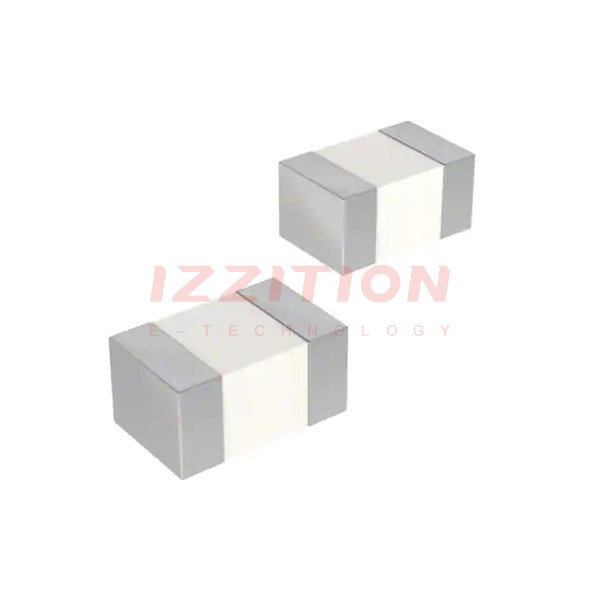

| Part Number | CI201210-R15J | CI201210-R10J |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Multilayer | Multilayer |
| Material - Core | Ceramic | Ceramic |
| Inductance | 150 nH | 100 nH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 250 mA | 300 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.5Ohm Max | 1Ohm Max |
| Q @ Freq | 15 @ 50MHz | 15 @ 100MHz |
| Frequency - Self Resonant | 400MHz | 500MHz |
| Ratings | - | - |
| Operating Temperature | -25°C ~ 100°C | -25°C ~ 100°C |
| Inductance Frequency - Test | 50 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) |
