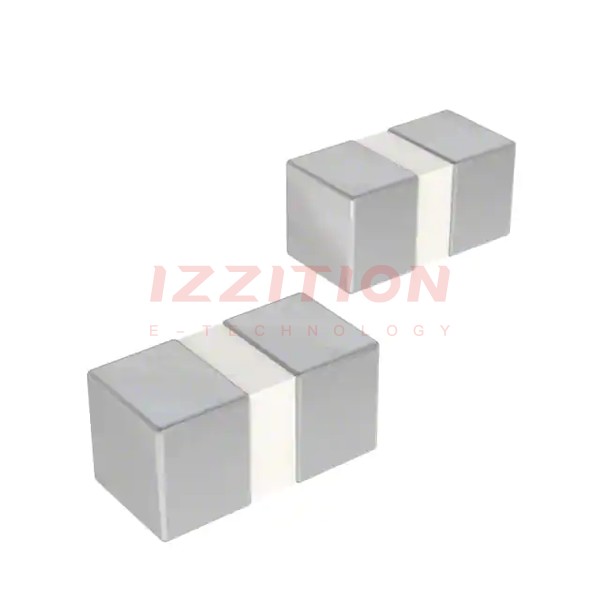

| Part Number | CI100505-4N7D | CI100505-2N7D |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Last Time Buy | Last Time Buy |
| Type | Multilayer | Multilayer |
| Material - Core | Ceramic | Ceramic |
| Inductance | 4.7 nH | 2.7 nH |
| Tolerance | ±0.3nH | ±0.3nH |
| Current Rating (Amps) | 300 mA | 300 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 210mOhm Max | 130mOhm Max |
| Q @ Freq | 8 @ 100MHz | 8 @ 100MHz |
| Frequency - Self Resonant | 4GHz | 6GHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) |
