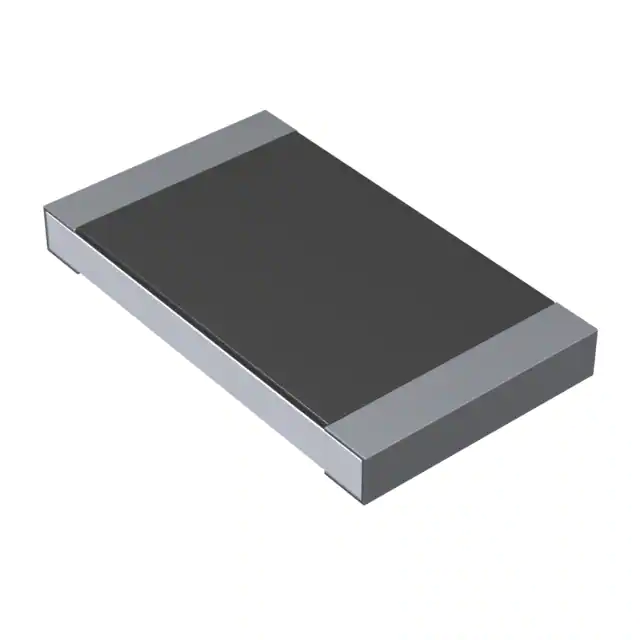

| Part Number | CHP0805-FX-1000ELF | CHP0805AFX-1000ELF | CHP0805-FX-1001ELF | CHP0805-FX-1002ELF | CHP0805-FX-1500ELF | CHP0805-FX-1800ELF | CHP0805-FX-1R00ELF | CHP0805-FX-1003ELF | CHP0805-FX-10R0ELF | CHP0805-FX-1200ELF |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 100 Ohms | 100 Ohms | 1 kOhms | 10 kOhms | 150 Ohms | 180 Ohms | 1 Ohms | 100 kOhms | 10 Ohms | 120 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±150ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 | 0805 | 0805 | 0805 | 0805 | 0805 | 0805 | 0805 | 0805 | 0805 |
| Ratings | - | AEC-Q200 | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
