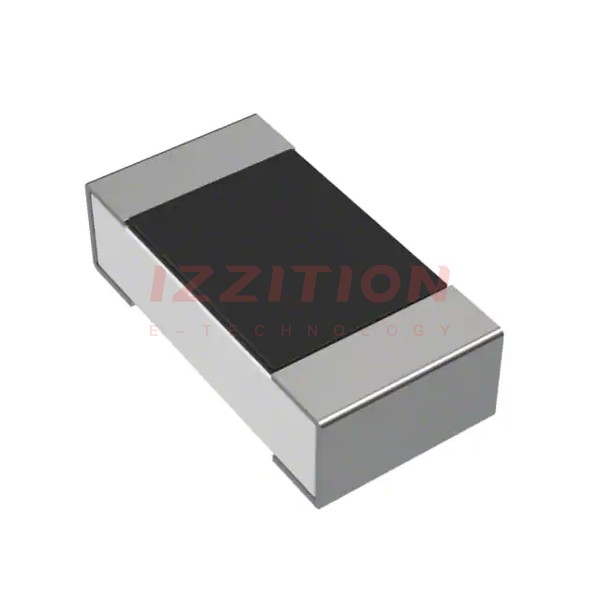

| Part Number | CHP0603AFX-1000ELF | CHP0603AFX-1002ELF | CHP0603AFX-1003ELF | CHP0603AFX-1001ELF | CHP0603AFX-10R0ELF | CHP0603AFX-1500ELF | CHP0603AFX-1200ELF | CHP0603-FX-1000ELF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 100 Ohms | 10 kOhms | 100 kOhms | 1 kOhms | 10 Ohms | 150 Ohms | 120 Ohms | 100 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
