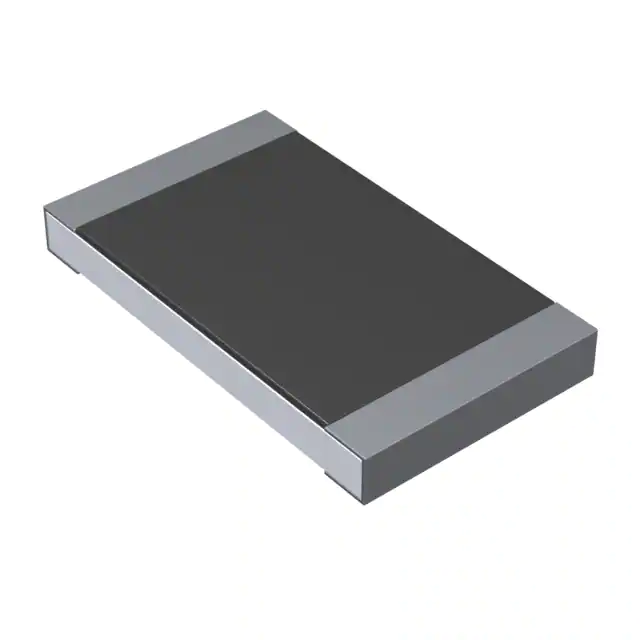

| Part Number | CHP0603-FX-2200ELF | CHP0603AFX-2200ELF | CHP0603-FX-2700ELF | CHP0603-FX-2210ELF | CHP0603-FX-22R0ELF | CHP0603-FX-8200ELF | CHP0603-FX-2201ELF | CHP0603-FX-2203ELF | CHP0603-FX-2202ELF | CHP0603-FX-1200ELF | CHP0603-FX-2000ELF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 220 Ohms | 220 Ohms | 270 Ohms | 221 Ohms | 22 Ohms | 820 Ohms | 2.2 kOhms | 220 kOhms | 22 kOhms | 120 Ohms | 200 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding | Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 |
| Ratings | - | AEC-Q200 | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
