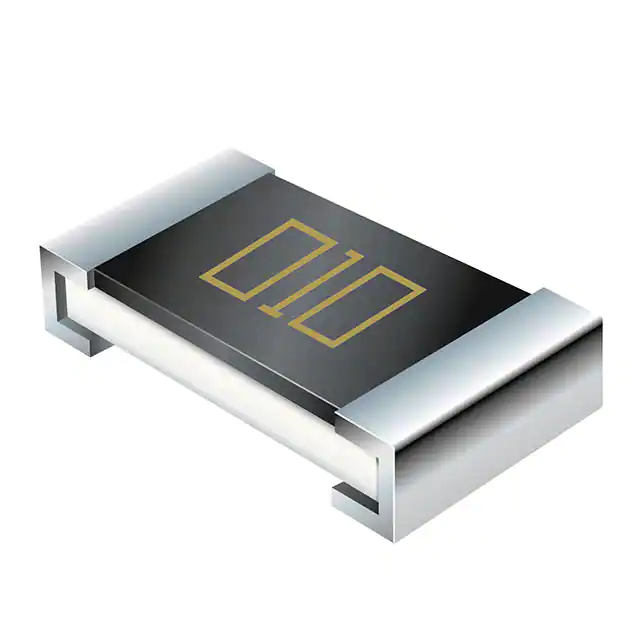

| Part Number | CFN0805-FX-R010ELF | CFN0805-FX-R020ELF | CFN0805-FX-R030ELF | CFN0805-JX-R010ELF | CFN0805-FZ-R010ELF |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Resistance | 10 mOhms | 20 mOhms | 30 mOhms | 10 mOhms | 10 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±5% | ±1% |
| Power (Watts) | 0.75W, 3/4W | 0.75W, 3/4W | 0.5W, 1/2W | 0.75W, 3/4W | 0.75W, 3/4W |
| Composition | Metal Foil | Metal Foil | Metal Foil | Metal Foil | Metal Foil |
| Features | Current Sense, Moisture Resistant | Current Sense, Moisture Resistant | Current Sense | Current Sense, Moisture Resistant | Current Sense |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±50ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 | 0805 | 0805 | 0805 | 0805 |
| Ratings | - | - | - | - | - |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - |
