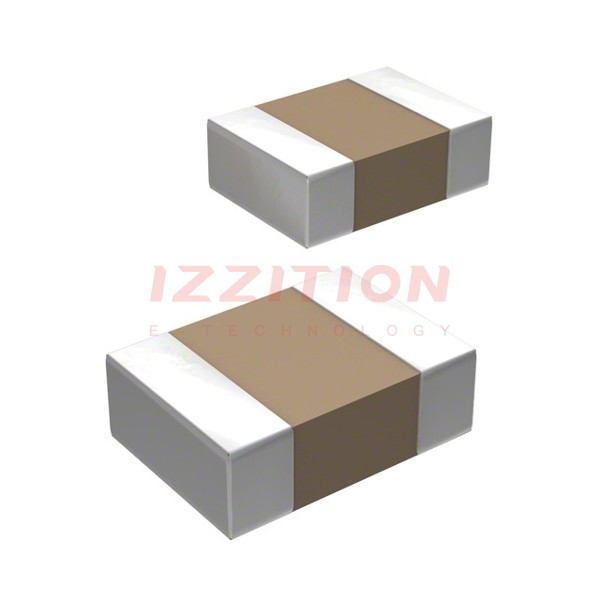

| Part Number | CF453215-R47K | CF453215-R27K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite |
| Inductance | 470 nH | 270 nH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 545 mA | 635 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 320mOhm Max | 260mOhm Max |
| Q @ Freq | 40 @ 25.2MHz | 40 @ 25.2MHz |
| Frequency - Self Resonant | 145MHz | 180MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 25.2 MHz | 25.2 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric) | 1812 (4532 Metric) |
| Supplier Device Package | 1812 | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.067" (1.70mm) | 0.067" (1.70mm) |
