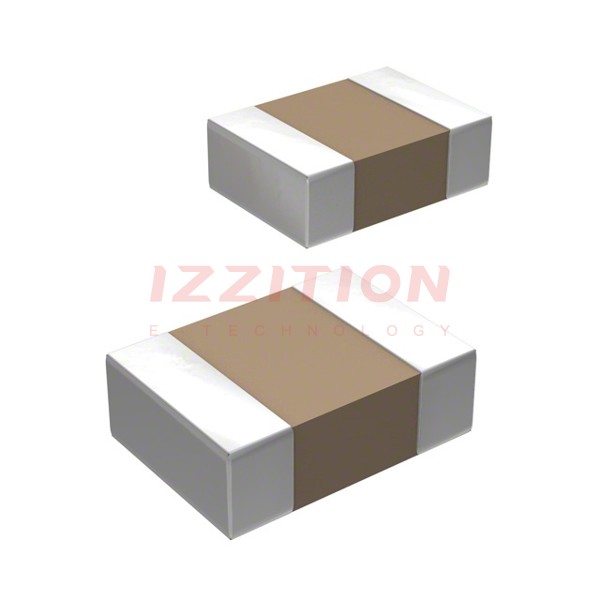

| Part Number | CF453215-3R3K | CF453215-3R9K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.3 µH | 3.9 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 355 mA | 330 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 800mOhm Max | 900mOhm Max |
| Q @ Freq | 50 @ 7.96MHz | 50 @ 7.96MHz |
| Frequency - Self Resonant | 45MHz | 40MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric) | 1812 (4532 Metric) |
| Supplier Device Package | 1812 | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.067" (1.70mm) | 0.067" (1.70mm) |
