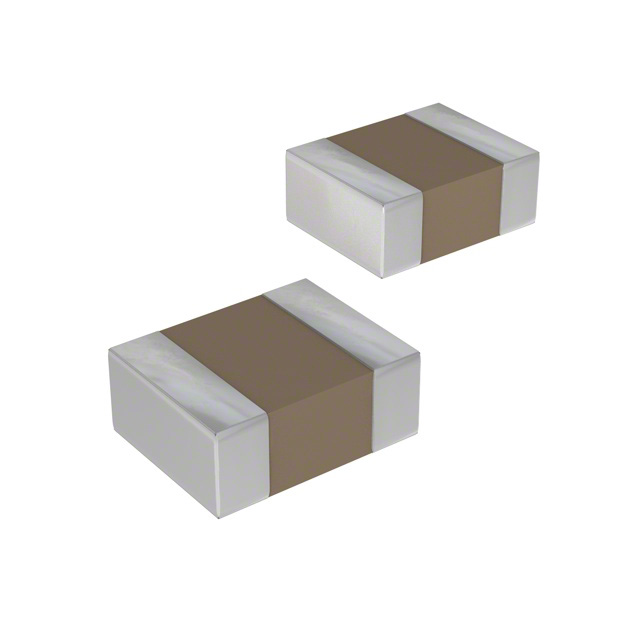

| Part Number | CF322513-6R8K | CF322513-1R8K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 1.8 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 180 mA | 350 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.8Ohm Max | 900mOhm Max |
| Q @ Freq | 30 @ 7.96MHz | 30 @ 7.96MHz |
| Frequency - Self Resonant | 43MHz | 80MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1210 | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) |
