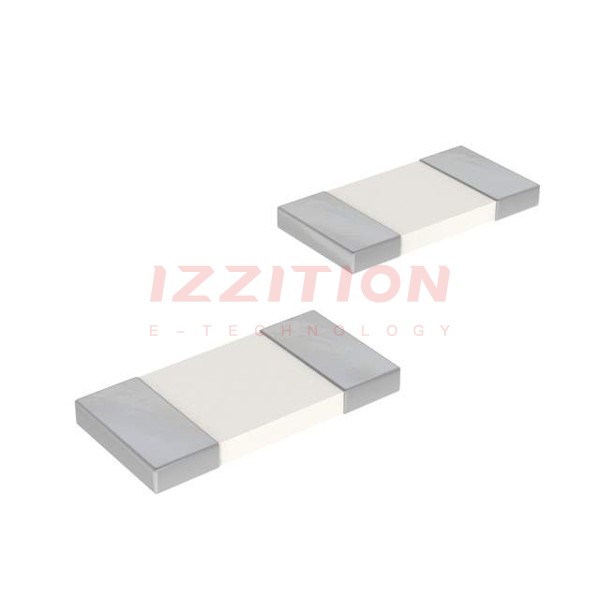

| Part Number | CE201210-3N3K | CE201210-3N9K | CE201210-3N3D | CE201210-3N3J |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ceramic | Ceramic | Ceramic | Ceramic |
| Inductance | 3.3 nH | 3.9 nH | 3.3 nH | 3.3 nH |
| Tolerance | ±10% | ±10% | ±0.3nH | ±5% |
| Current Rating (Amps) | 300 mA | 300 mA | 300 mA | 300 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 130mOhm Max | 150mOhm Max | 130mOhm Max | 130mOhm Max |
| Q @ Freq | 16 @ 100MHz | 18 @ 100MHz | 16 @ 100MHz | 16 @ 100MHz |
| Frequency - Self Resonant | 4GHz | 4GHz | 4GHz | 4GHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.041" (1.03mm) | 0.041" (1.03mm) | 0.041" (1.03mm) | 0.041" (1.03mm) |
