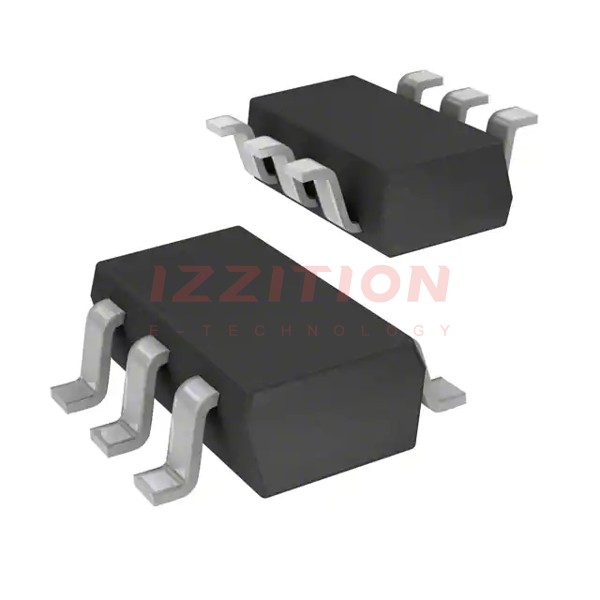

| Part Number | CDSOT236-T12LC | CDSOT23-T12LC | CDSOT236-T12C |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - |
| Bidirectional Channels | 1 | 1 | 5 |
| Voltage - Reverse Standoff (Typ) | 12V | 12V | 12V |
| Voltage - Breakdown (Min) | 13.3V | 13.3V | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 19V | 25.9V | 29.2V |
| Current - Peak Pulse (10/1000µs) | 11A (8/20µs) | 27A (8/20µs) | 12A (8/20µs) |
| Power - Peak Pulse | 350W | 500W | 350W |
| Power Line Protection | - | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 3pF @ 1MHz | 5pF @ 1MHz | 80pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-23-6 | TO-236-3, SC-59, SOT-23-3 | SOT-23-6 |
| Supplier Device Package | SOT-23-6 | SOT-23-3 | SOT-23-6 |
