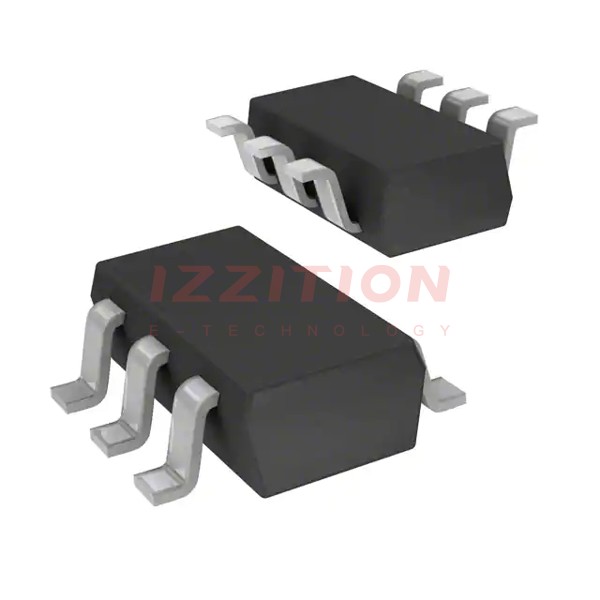

| Part Number | CDSOT236-T05 | CDSOT236-T05C | CDSOT236-T15 | CDSOT23-T05 |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Last Time Buy | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 4 | - | 4 | 1 |
| Bidirectional Channels | - | 5 | - | - |
| Voltage - Reverse Standoff (Typ) | 5V | 5V | 15V | 5V |
| Voltage - Breakdown (Min) | 6V | 6V | 16.7V | 6V |
| Voltage - Clamping (Max) @ Ipp | 21V | 21V | 34.6V | 13.5V |
| Current - Peak Pulse (10/1000µs) | 17A (8/20µs) | 17A (8/20µs) | 10A (8/20µs) | 42A (8/20µs) |
| Power - Peak Pulse | 350W | 350W | 350W | 500W |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | 350pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-23-6 | SOT-23-6 | SOT-23-6 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-3 |
