CDSOT23-T24CAN
  • Share:

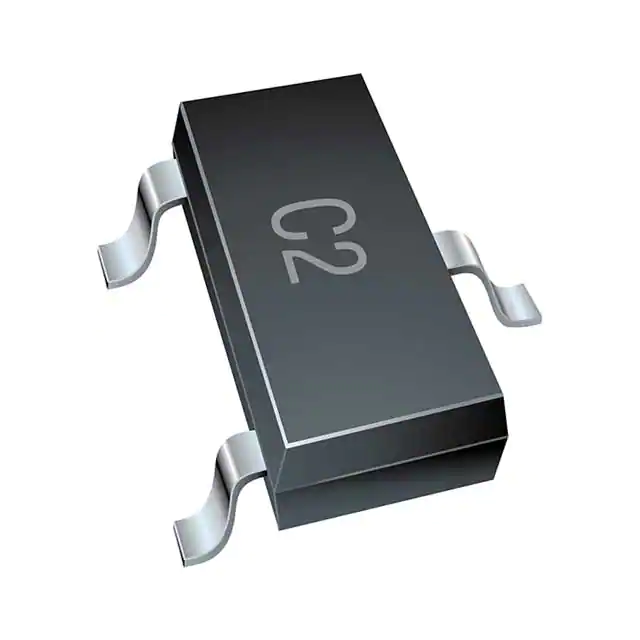

Bourns Inc. CDSOT23-T24CAN

Manufacturer No:
CDSOT23-T24CAN
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
CDSOT23-T24CAN Datasheet
ECAD Model:
-
Description:
TVS DIODE 24VWM 40VC SOT23
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Zener
Unidirectional Channels:-
Bidirectional Channels:2
Voltage - Reverse Standoff (Typ):24V
Voltage - Breakdown (Min):26.2V
Voltage - Clamping (Max) @ Ipp:40V
Current - Peak Pulse (10/1000µs):8A (8/20µs)
Power - Peak Pulse:-
Power Line Protection:No
Applications:CAN
Capacitance @ Frequency:22pF @ 1MHz
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SOT-23
0 Remaining View Similar

In Stock

$0.39
1,581

Please send RFQ , we will respond immediately.
