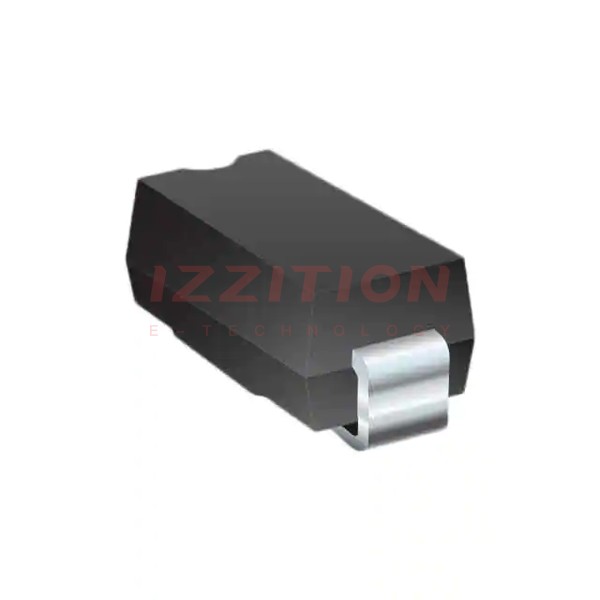

| Part Number | CD214B-S3J | CD214C-S3J | CD214B-S3M | CD214B-FS3J | CD214B-S2J | CD214B-S3G |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 1000 V | 600 V | 600 V | 400 V |
| Current - Average Rectified (Io) | 3A | 3A | 3A | 3A | 2A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 3 A | 1 V @ 3 A | 1 V @ 3 A | 1.7 V @ 3 A | 1 V @ 2 A | 1 V @ 3 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | 35 ns | - | - |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V | 5 µA @ 600 V | 5 µA @ 1000 V | 5 µA @ 600 V | 5 µA @ 600 V | 5 µA @ 400 V |
| Capacitance @ Vr, F | 23pF @ 4V, 1MHz | - | 23pF @ 4V, 1MHz | 19pF @ 4V, 1MHz | 14pF @ 4V, 1MHz | 23pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Supplier Device Package | 2-SMD | 2-SMD | 2-SMD | 2-SMD | 2-SMD | 2-SMD |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
