Please send RFQ , we will respond immediately.

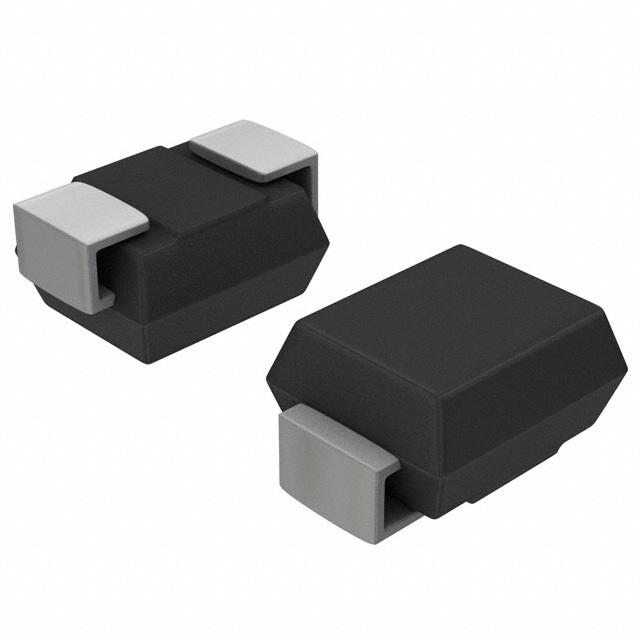

| Part Number | CD214B-R3100 | CD214B-R3400 | CD214B-R3800 | CD214C-R3100 | CD214B-R31000 | CD214B-R3200 | CD214B-R3600 | CD214B-F3100 | CD214B-R2100 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 400 V | 800 V | 100 V | 1000 V | 200 V | 600 V | 100 V | 100 V |
| Current - Average Rectified (Io) | 3A | 3A | 3A | 3A | 3A | 3A | 3A | 3A | 2A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A | 1 V @ 1 A | 1 V @ 1 A | 1.15 V @ 3 A | 1 V @ 1 A | 1 V @ 1 A | 1 V @ 1 A | 950 mV @ 1 A | 1 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - | 35 ns | - |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V | 5 µA @ 400 V | 5 µA @ 800 V | 10 µA @ 100 V | 5 µA @ 1000 V | 5 µA @ 200 V | 5 µA @ 600 V | 5 µA @ 100 V | 5 µA @ 100 V |
| Capacitance @ Vr, F | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz | 10pF @ 4V, 1MHz | 25pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AB, SMC | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMC (DO-214AB) | SMB (DO-214AA) | SMB (DO-214AA) | DO-214AA (SMB) | SMB (DO-214AA) | SMB (DO-214AA) |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -55°C ~ 150°C | -65°C ~ 175°C |
